Boilerplate and Runbooks

Gruntwork Runbooks are interactive markdown documents that combine documentation with executable functionality, including code generation. Boilerplate is the template engine that powers Runbooks’ code generation.

This means that with minimal work, you can transform any of your boilerplate templates into an instant interactive web UI that generates customized code. Runbooks will honor your boilerplate variable types, validations, dependencies, and more.

Better yet, you can add documentation to your boilerplate template in standard markdown, run customizable commands, authenticate to services like AWS and GitHub, git clone a repo, compute boilerplate variables from custom scripts and more.

How It Works

A Runbook is an MDX file that can contain special blocks like <Template>, <Inputs>, and <TemplateInline>. These blocks reference Boilerplate templates (directories with a boilerplate.yml), and Runbooks automatically generates web forms from the variable definitions.

Here’s the flow:

1. You write a boilerplate.yml with variables, just like any Boilerplate template
2. You reference that template from a Runbook MDX file using a <Template> block
3. Runbooks reads the boilerplate.yml and auto-generates a web form
4. The user fills in the form, and Boilerplate renders the output files

Example

The Boilerplate template

A standard Boilerplate template with variables and template files:

templates/lambda-unit/boilerplate.yml

variables:
  - name: Environment
    type: enum
    description: Target environment for deployment
    options:
      - non-prod
      - prod
    default: non-prod

  - name: AwsRegion
    type: enum
    description: The AWS region to deploy the Lambda function to
    options:
      - us-east-1
      - us-west-2
      - eu-west-1
    default: "us-west-2"
    validations: "required"

  - name: FunctionName
    type: string
    description: Name for your Lambda function
    default: example-lambda
    validations: "required"

  - name: Runtime
    type: enum
    description: Lambda runtime environment
    options:
      - python3.13
      - python3.12
      - nodejs22.x
      - nodejs20.x
    default: python3.13

The Runbook

The Runbook MDX file references the template with a <Template> block:

## Configure the Lambda function

First, let's configure the Lambda function itself. This is boilerplate code
that will run "Hello, World!" when the Lambda function is invoked.

<Template id="lambda-setup" path="templates/lambda-unit" />

The result

Runbooks reads the boilerplate.yml and renders an interactive form. Each variable becomes a form field matching its type — text inputs for strings, dropdowns for enums, checkboxes for booleans:

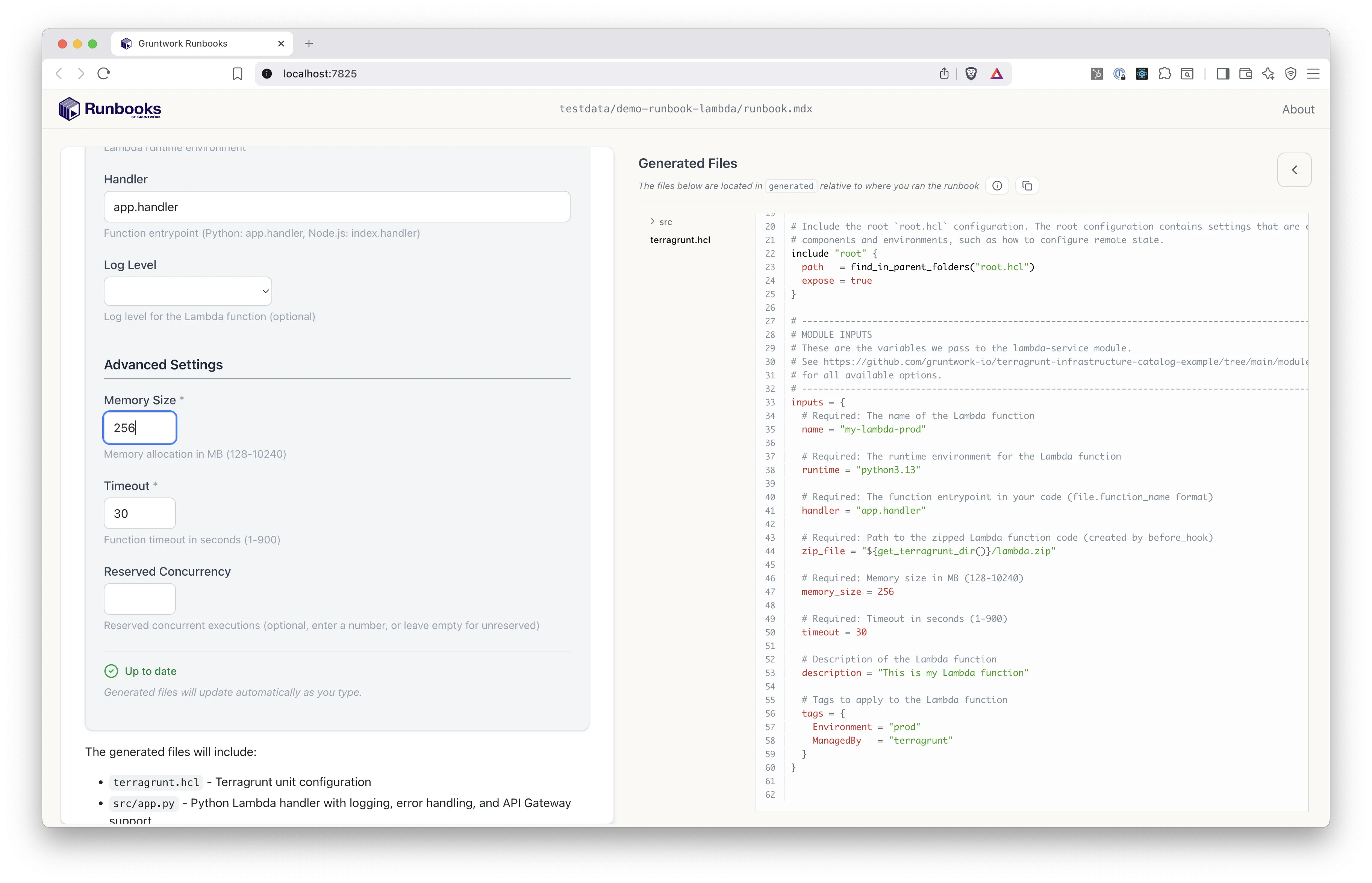

As the user fills in the form, a live preview shows exactly how their inputs affect the generated code:

When the user clicks Generate, Boilerplate processes the template files and writes the rendered output to the workspace.

Runbooks-Specific Extensions

Tip

For the most up to date information on Runbooks-specific extensions, see the official Runbooks documentation.

Runbooks adds a few YAML extensions (prefixed with x-) to the standard boilerplate.yml format:

Extension	Purpose
x-section	Groups related variables under named collapsible headings in the form UI
x-schema	Defines structured field schemas for map type variables
x-schema-instance-label	Custom label for each entry in a schema-based map

variables:
  - name: FunctionName
    type: string
    description: Name for your Lambda function
    x-section: Function Settings

  - name: AwsRegion
    type: enum
    description: AWS region
    x-section: Deployment Settings

  - name: Tags
    type: map
    description: Resource tags
    x-section: Advanced
    x-schema:
      Name: string
      Environment: string
    x-schema-instance-label: Tag Name

Block Types

Runbooks provides several block types that use Boilerplate:

• Template
• Inputs
• TemplateInline
• Sharing variables between blocks

For details, see the authoring section in the Runbooks documentation.

In general, everything you know about Boilerplate such as variables, types, validations, dependencies, Go template syntax, and helper functions all works in Runbooks. The Runbook UI is effectively a visual layer on top of the same Boilerplate engine.

Learn More

• Runbooks documentation
• Runbooks GitHub repository
